How to Expand to 200W For Your Solar Panel System?
If you're looking for a convenient and portable power solution, the acopower 100W Monocrystalline Portable Solar Panel Kit is the ideal choice.
ACOPOWER Portable Solar Panel Kit 100W, with ProteusX Waterproof 20A LCD Charge Controller for 12V Battery for RV & Marine, The most advanced design concept, high efficiency, and ingenious structure can be freely combined and expanded to 200W for customers to fast charge.this lightweight includes two 50 Watt Monocrystalline Solar Panels, Portable Solar Panel Kit 100W for easy connection to the battery, widely applications homes, RV’s, vans, or cabins and protective casing for safe portability. will make charging on the go so easy ，Extra use Expand 100W Portable Solar panel，that can fast charge your battery.
How to Expand to 200W For Your Solar Panel System?
You can refer to the video: https://youtu.be/jhfIpcatT1Y Solar kit built-in charge controller, if you need to expand, you need a pair of MC4-Y-Branch (already included in the package）
 |
 |
 |
 |
1. Check Accessories:
MC4-Y connector. Portable Solar Panel Kit 100W. Expand 100W Soar panel.
2. Connect /Install as Easy 1-2-3
a: Disconnect MC4 between the solar controller and the solar panel, use the F-MM and M-FF MC4-Y connector. then connect the "F" and "M" terminals to the MC4 of the solar controller output， "FF" and "MM" are connected to 2PCSsolar panel MC4.

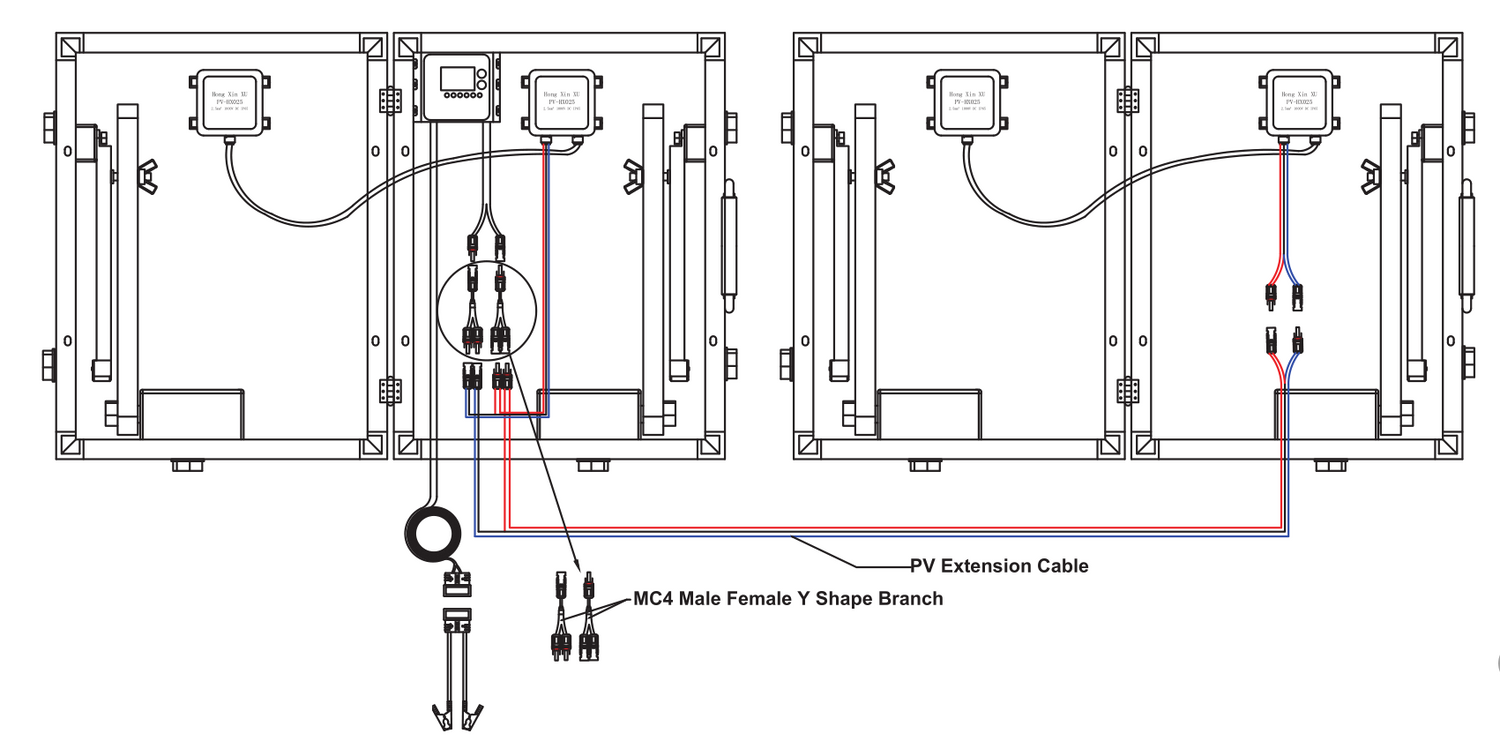

b: Reference Electrical Diagram: (The distance between solar panels is far, you need to purchase extra PV Extension cable )
3. Customer Actual Install Effect:
 |
 |
