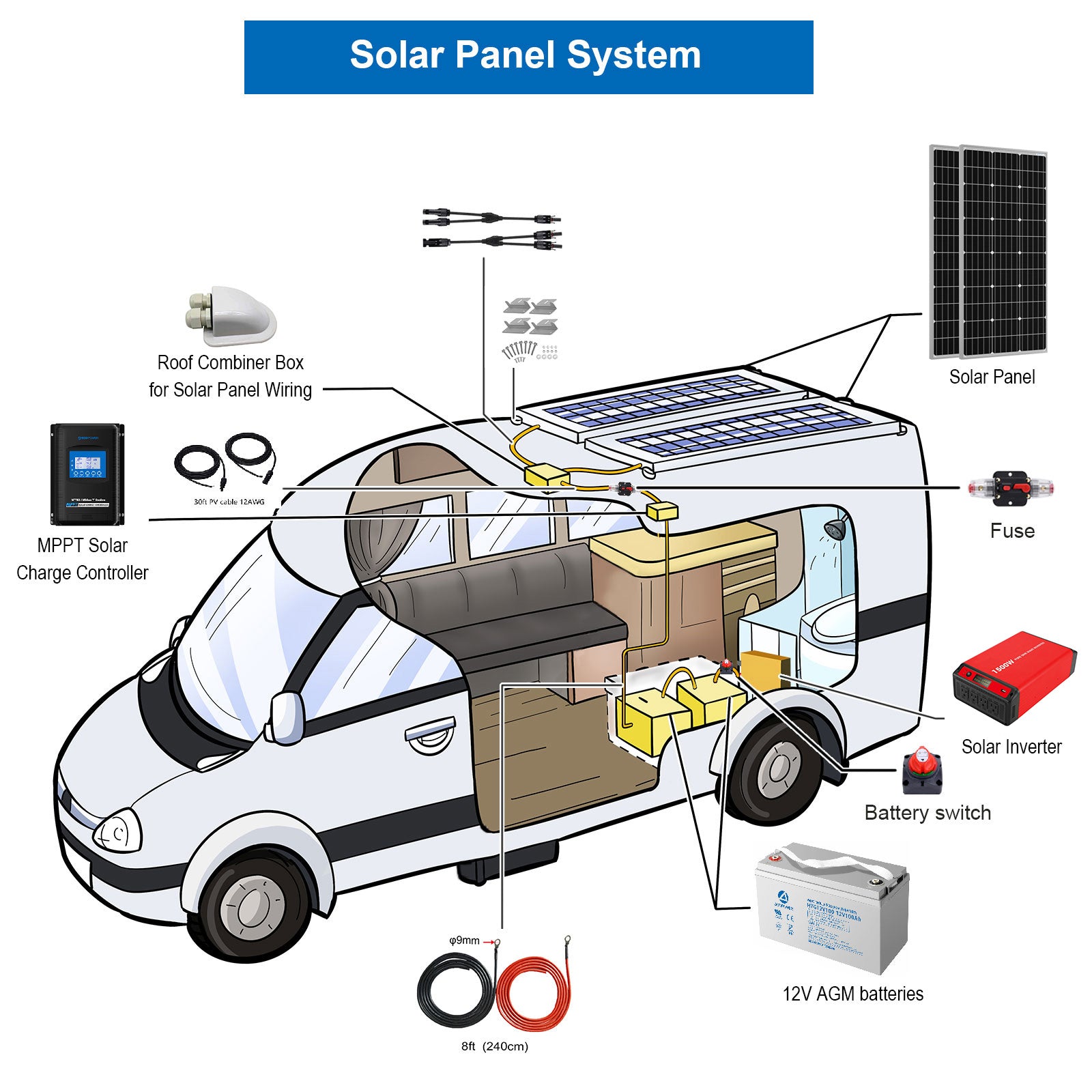

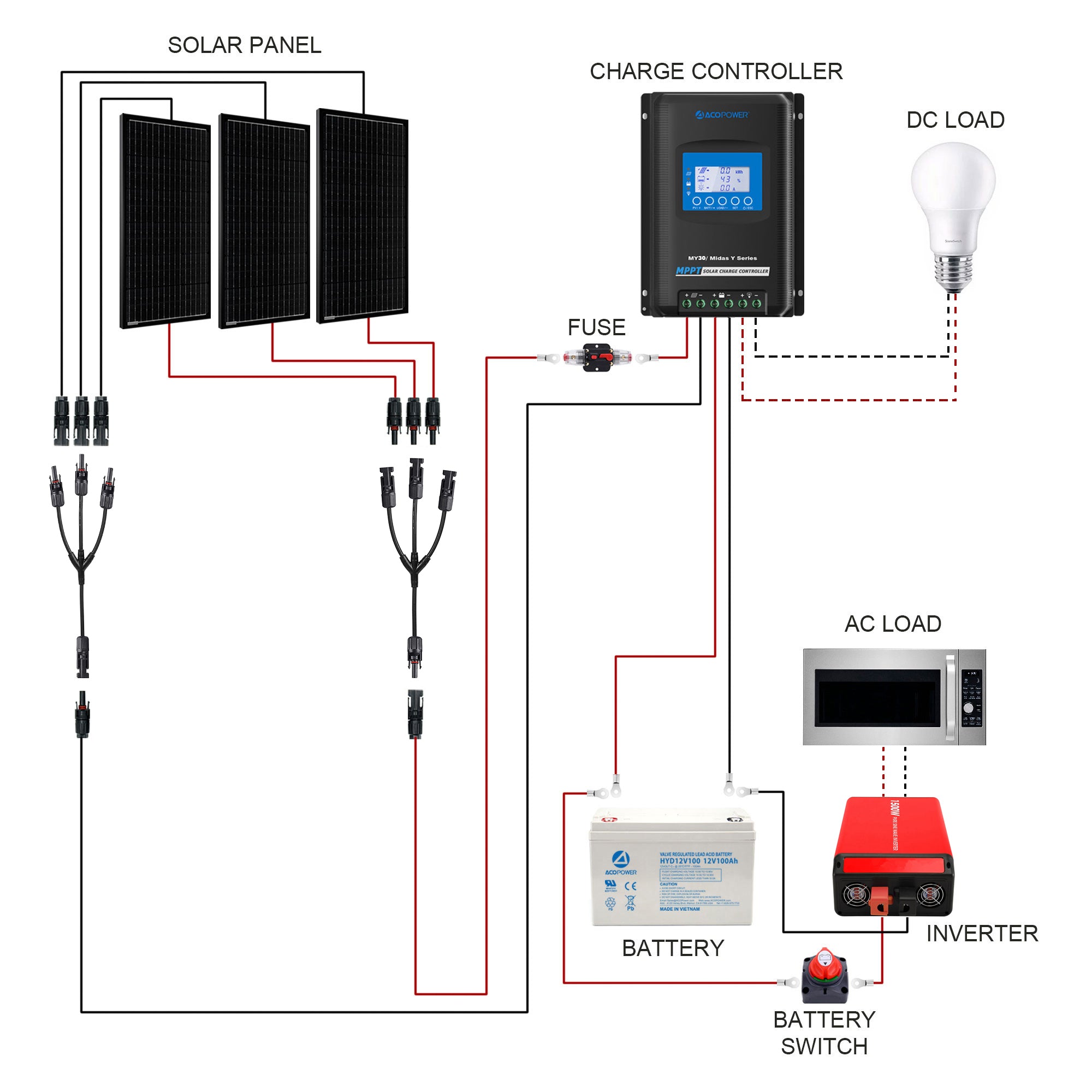

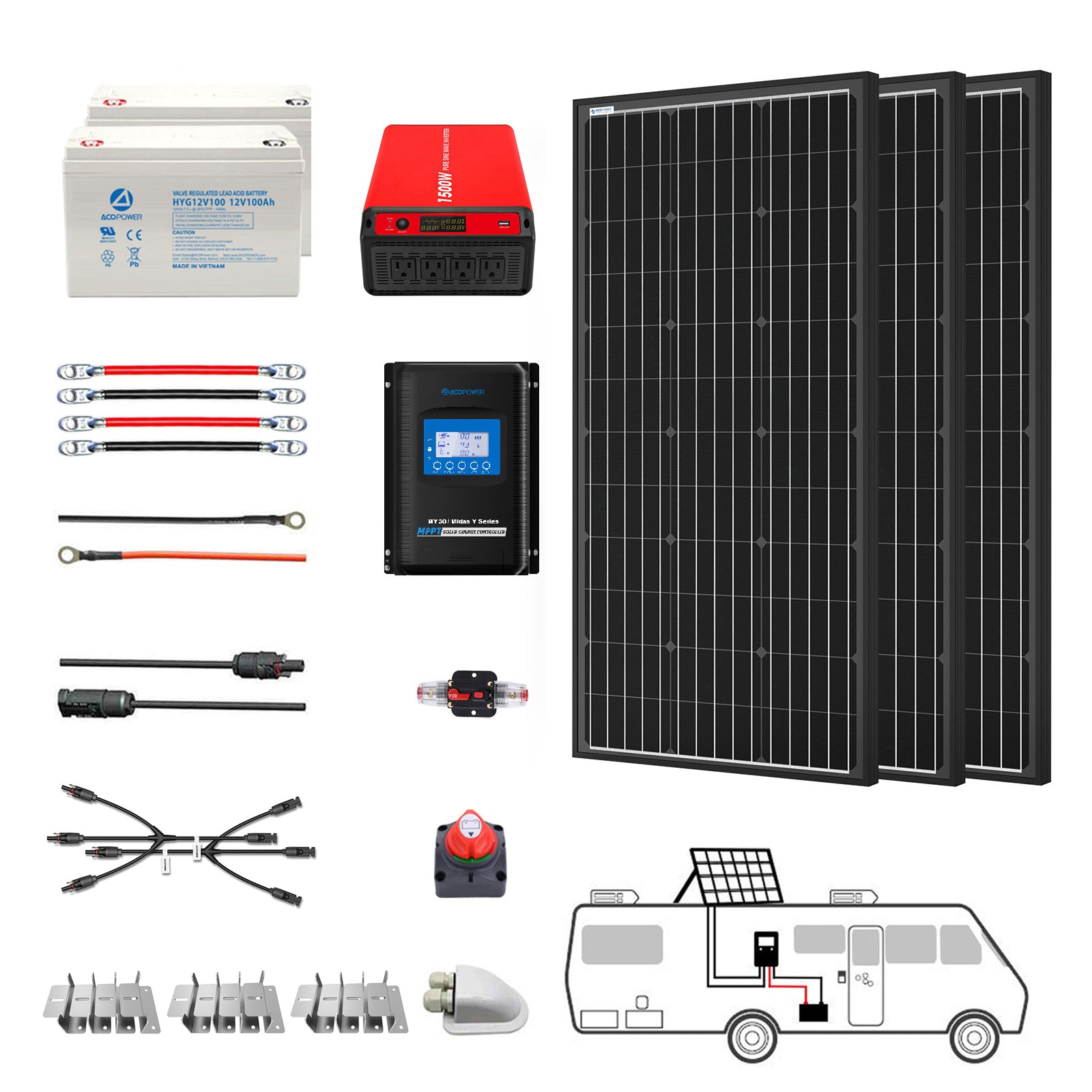

ACOPOWER 300W Mono RV Solar System
(2)
- 100W Monocrystalline Solar Panel
- 1500W Inverter 12VDC to 120VAC
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.14A
- Max Power Current(Imp):5.71A
- Dimension:40.2*20.1*1.4 Inch
- Application Class: Class A
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave

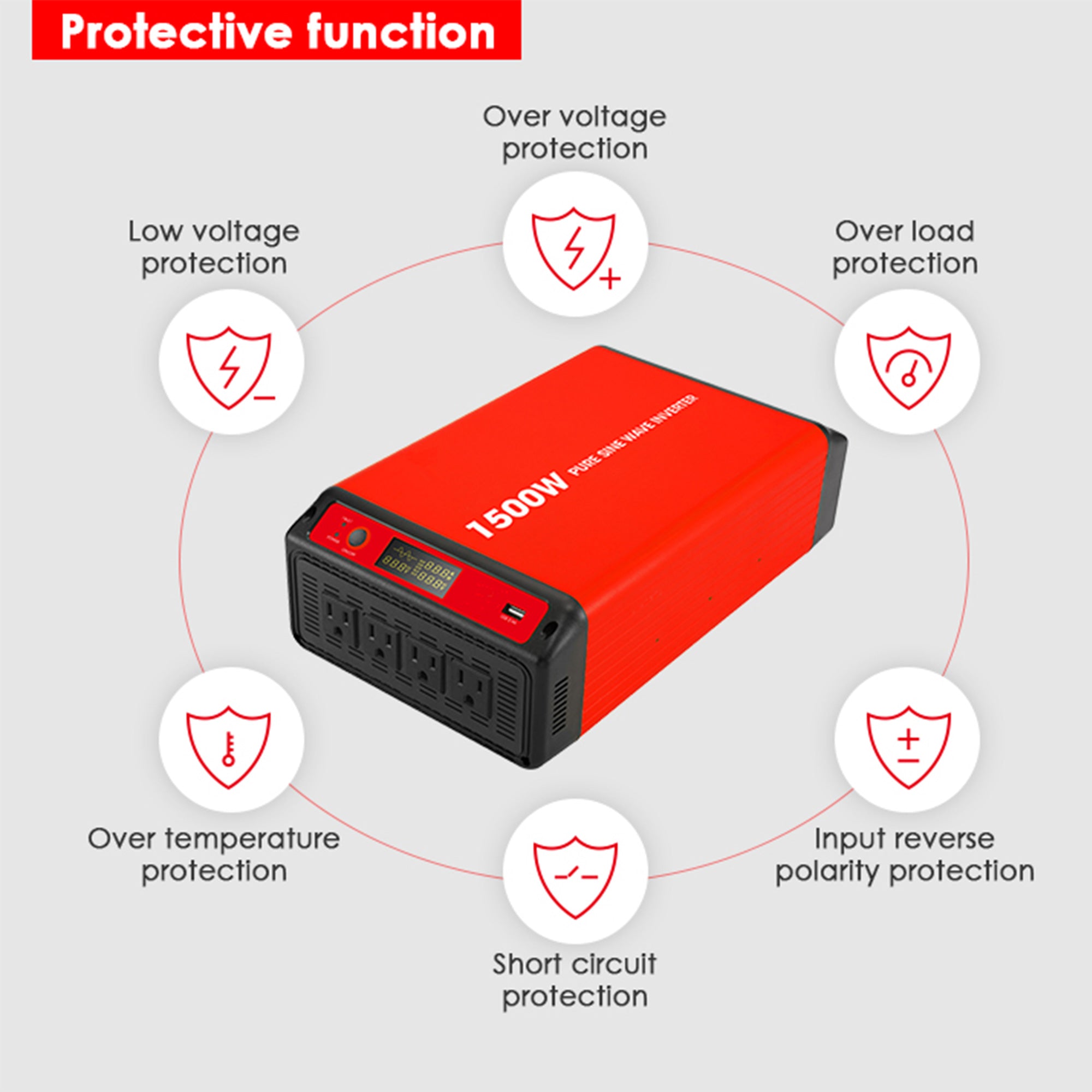

- Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

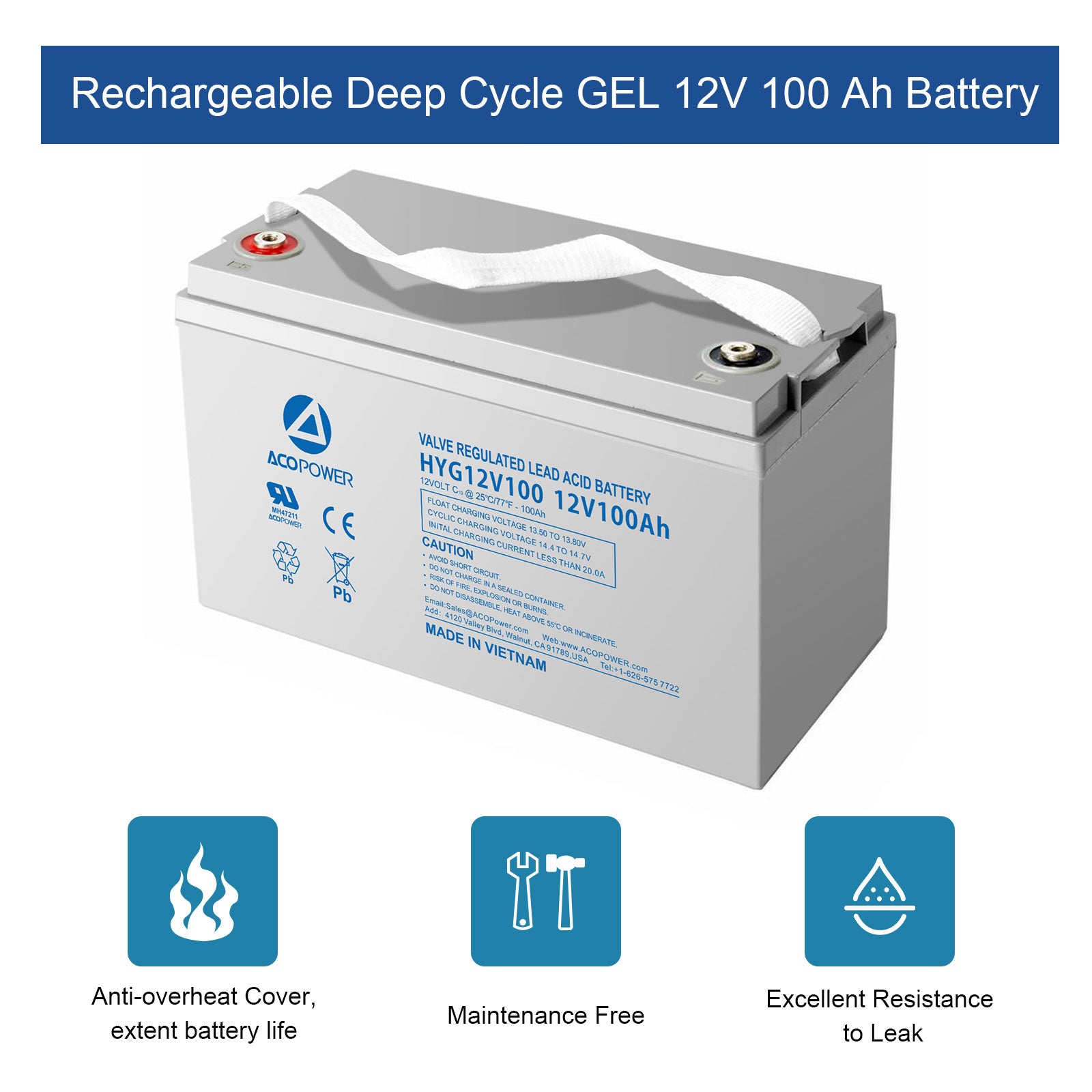

- 12V 100 Ah Rechargeable Deep Cycle GEL Battery

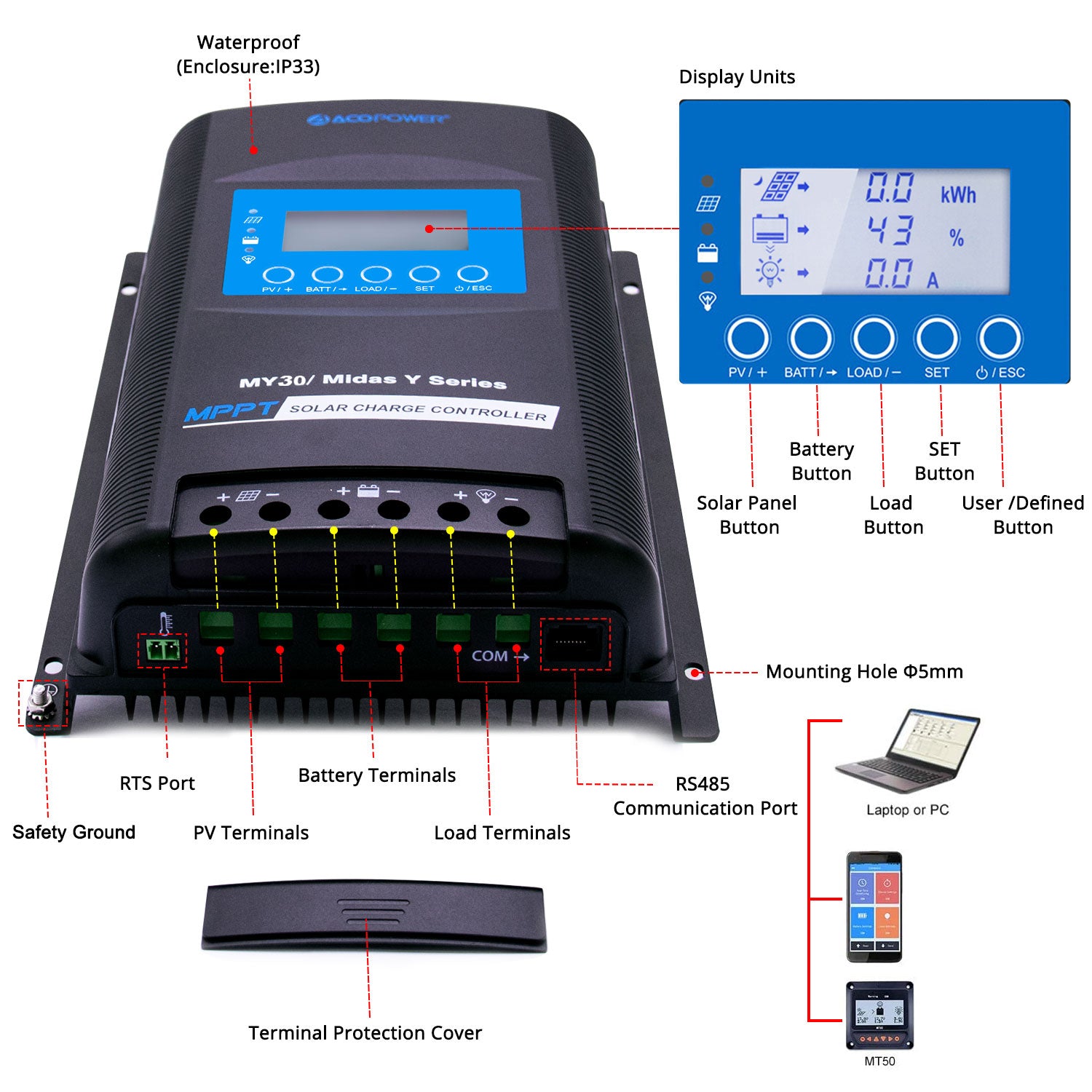

- MPPT Solar Charge Controller 30A
- Nominal Voltage 12V
- Rated capacity (10 hour rate): 100Ah
- dimension(inch):12.99 x 6.73 (W) x 8.43 (H) inch; Total Height: 8.66inch
- Approx. Weight: 30.5kg(67.2lbs)±3%
- Rated charge current: 30A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/390W,24V/780W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method
- WARRANTY INFORMATION
- USER MANUAL
- Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
- Solar Charge Controllers: The controller itself comes with a 1-year warranty.
- Accessories: 1-year material warranty
- 100W Monocrystalline Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.14A
- Max Power Current(Imp):5.71A
- Dimension:40.2*20.1*1.4 Inch
- Application Class: Class A
- 1500W Inverter 12VDC to 120VAC
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch
- 12V 100 Ah Rechargeable Deep Cycle GEL Battery
- Nominal Voltage 12V
- Rated capacity (10 hour rate): 100Ah
- dimension(inch):12.99 x 6.73 (W) x 8.43 (H) inch; Total Height: 8.66inch
- Approx. Weight: 30.5kg(67.2lbs)±3%
- MPPT Solar Charge Controller 30A
- Rated charge current: 30A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/390W,24V/780W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method
- WARRANTY INFORMATION
- Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
- Solar Charge Controllers: The controller itself comes with a 1-year warranty.
- Accessories: 1-year material warranty
- USER MANUAL
