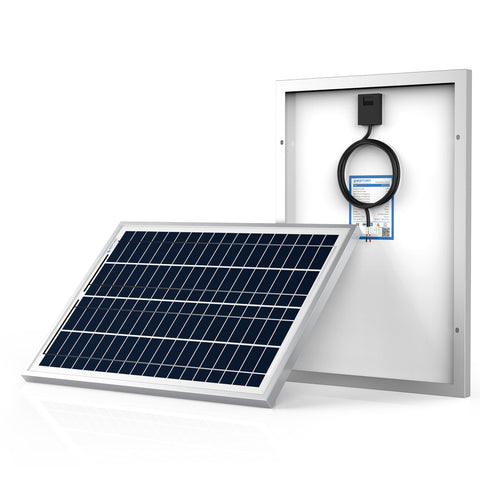

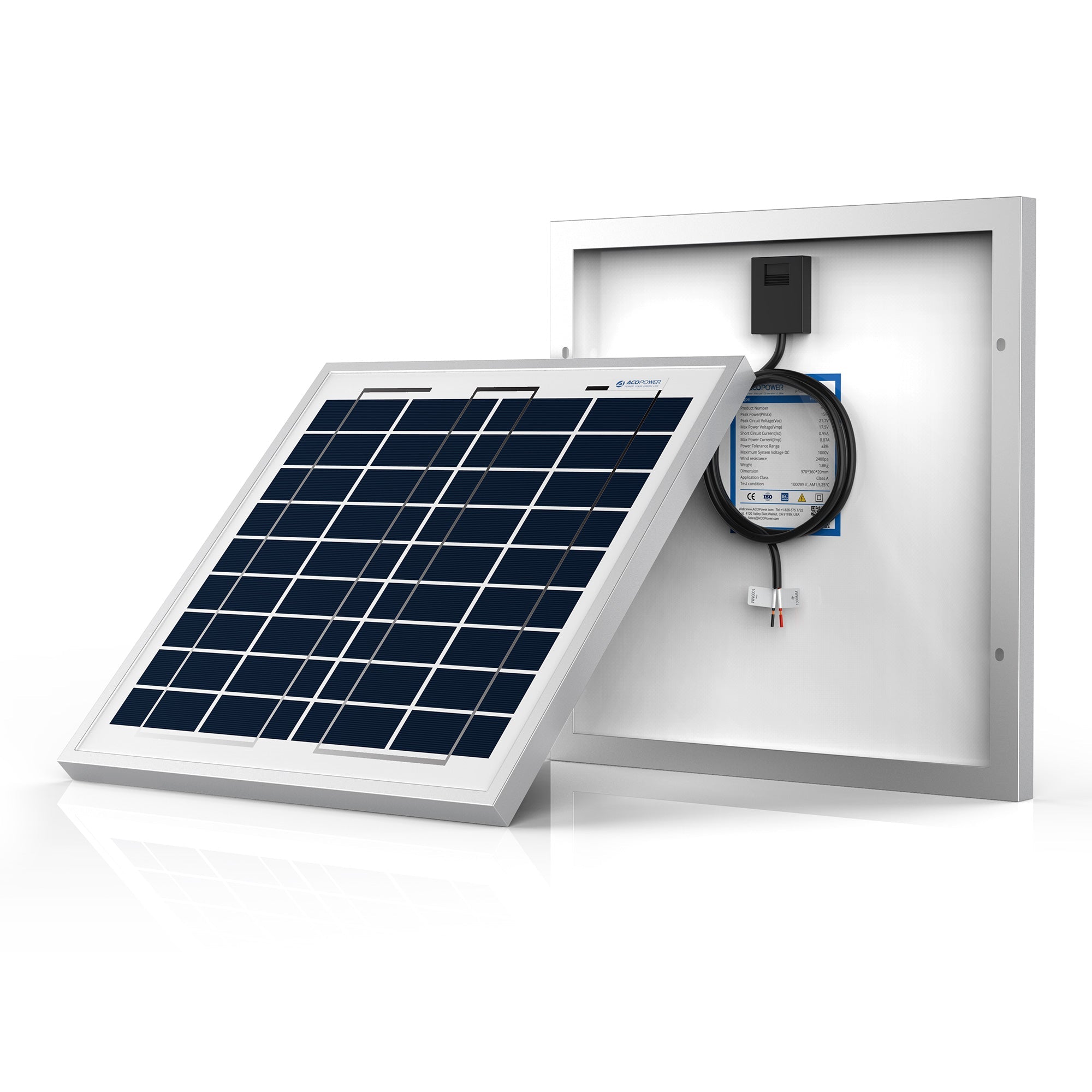

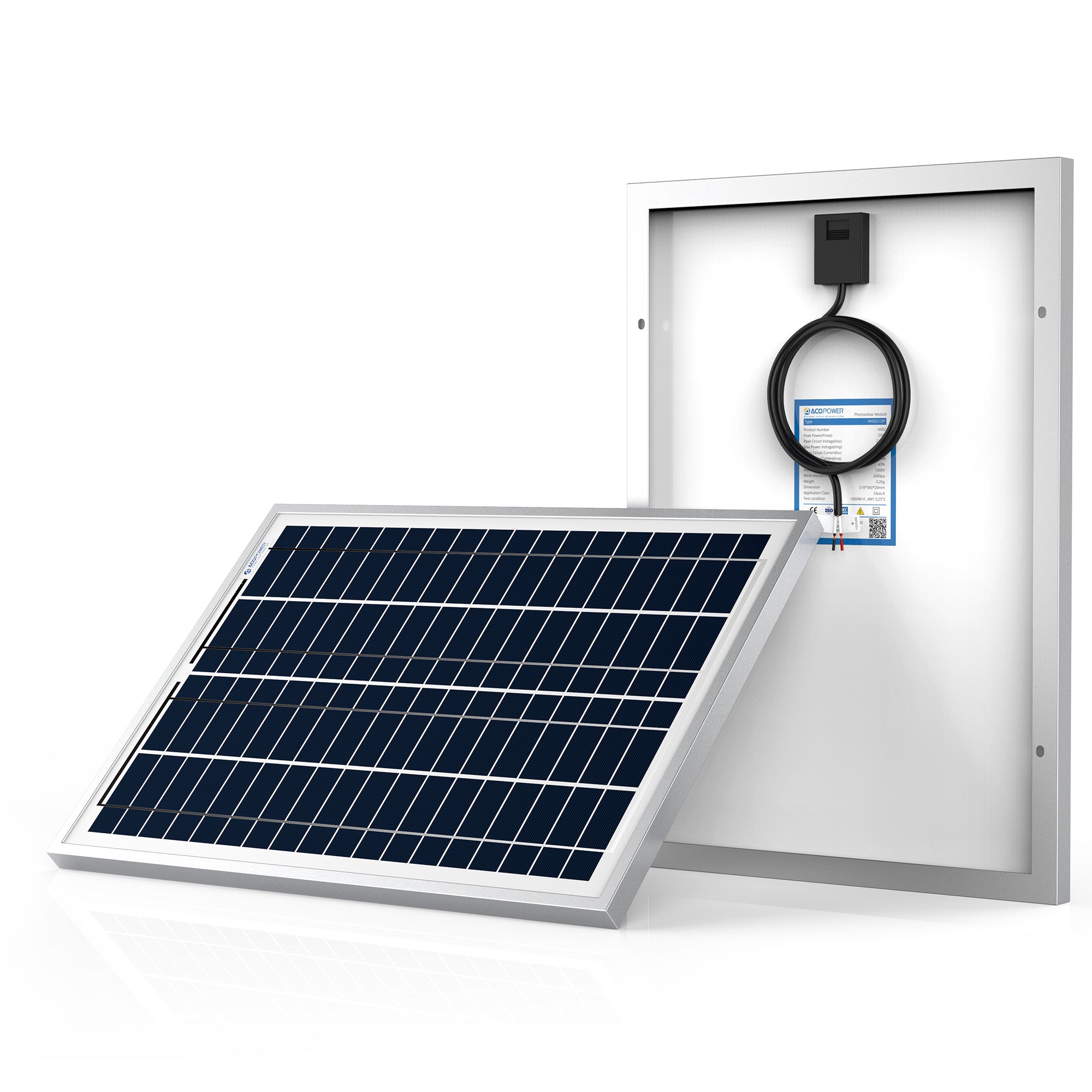

ACOPOWER Poly Solar Panel——15W, 25W, 35W

Regular price ₩49,000
Sale price ₩49,000 Regular price
Watt
Shipping calculated at checkout.

Pickup available at Walnut USA

일반적으로 24시간 후 준비 완료

ACOPOWER Poly Solar Panel——15W, 25W, 35W

15 Watt
  • Walnut USA

    Pickup available, 일반적으로 24시간 후 준비 완료

    4120 VALLEY BLVD
    Walnut CA 91789
    미국

    +16265757722

AdventureCarousel Pre-order now! 🌟Shipping starts September 15th! 🎉
Free Shipping
Free Shipping to United States...
Estimated Dispatch within 2 Business Days
more More information
Fast 4-Day Delivery
Arrive within 2-7 Business Days
*US,AU,CA only. For other regions, click "More"
more More information
14-Day Risk free trial
Pickup available at Walnut USA
*Usually ready in 24 hours
more More information
2-Year Warranty
30-Day Return Policy|18-Month Warranty Protection
more More information
PAY
Ways To Pay
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Don't Miss Top Accessories
Features
High Wind

2400Pa

12V solar panel can withstand all weather conditions suchas sandstorm,strong wind,thunderstorm, blizzard, hail,etc.lt can withstand up to 2400Pa wind pressure

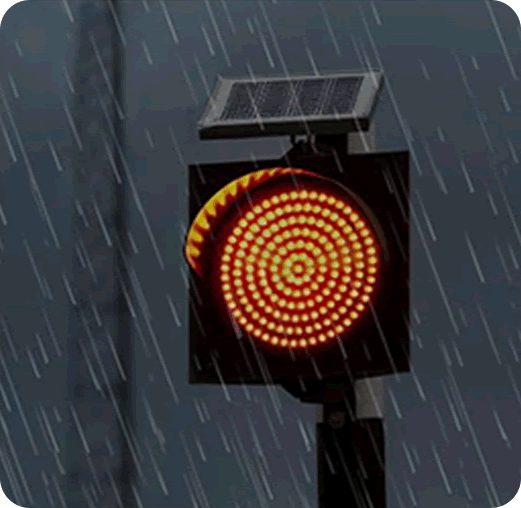

Waterproof

IP65

Low-iron tempered qlass surface and corrosion-resistantaluminum frame, make this solar panel 100% waterproof

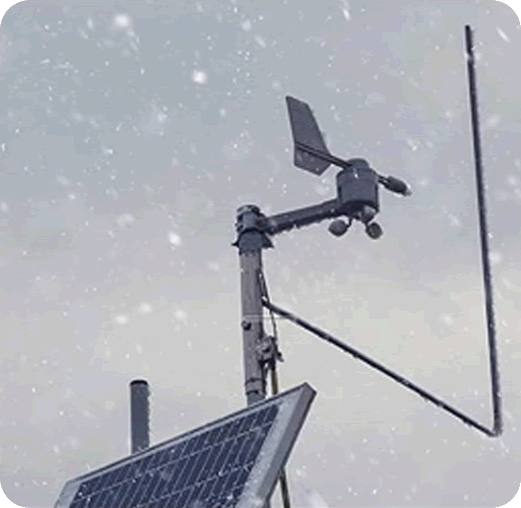

Snow Cover

5400Pa

12V solar panel can withstand all weather conditions such as sandstorm, strong wind, thunderstorm, blizzard, hail, etc. It can withstand up to 5400Pa snow load

Specifications

Specification

HY015-12P HY025-12P HY035-12P
Characteristics 15W 25W 35W
Open-Circuit Voltage(Voc) 21.7V 22.0V 22.0V
Optimum Circuit Voltage(Vmp) 17.5V 17.5V 17.5V
Short-Circuit Current(Isc) 0.95A 1.54A 2.15A
Optimum Circuit Current(Imp) 0.87A 1.43A 2.00A
Maximum Power at STC(Pmax) 15W 25W 35W
Module Efficiency 10.42% 11.06% 11.56%
Operating Temperature -40°C ~ +85°C -40°C ~ +85°C -40°C ~ +85°C
Maximum System Voltage 1000V DC 1000V DC 1000V DC
Power tolerance ±3% ±3% ±3%
Type of cell Poly-crystalline 156 x 156 mm (5 inches) Poly-crystalline 156 x 156 mm (5 inches) Poly-crystalline 156 x 156 mm (5 inches)

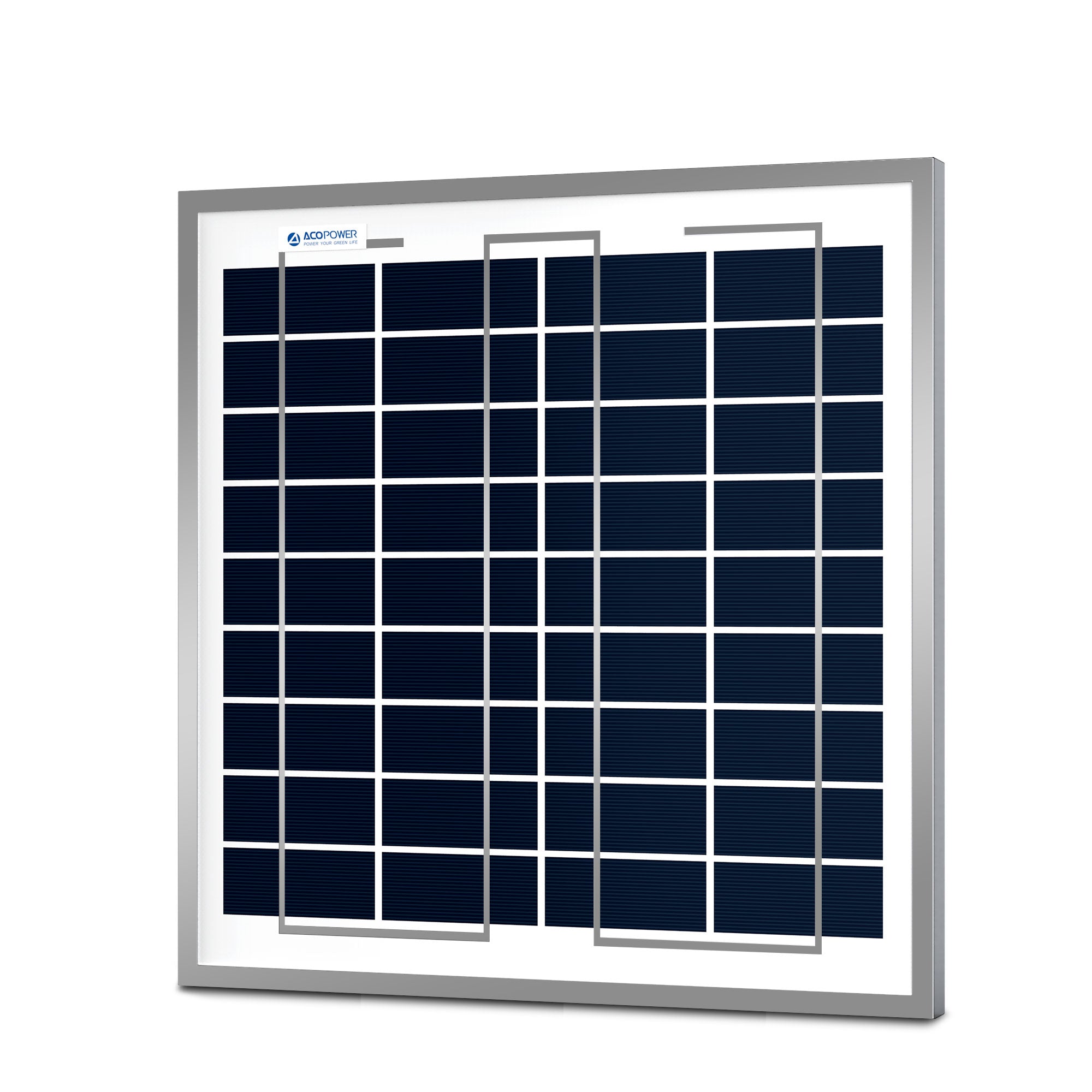

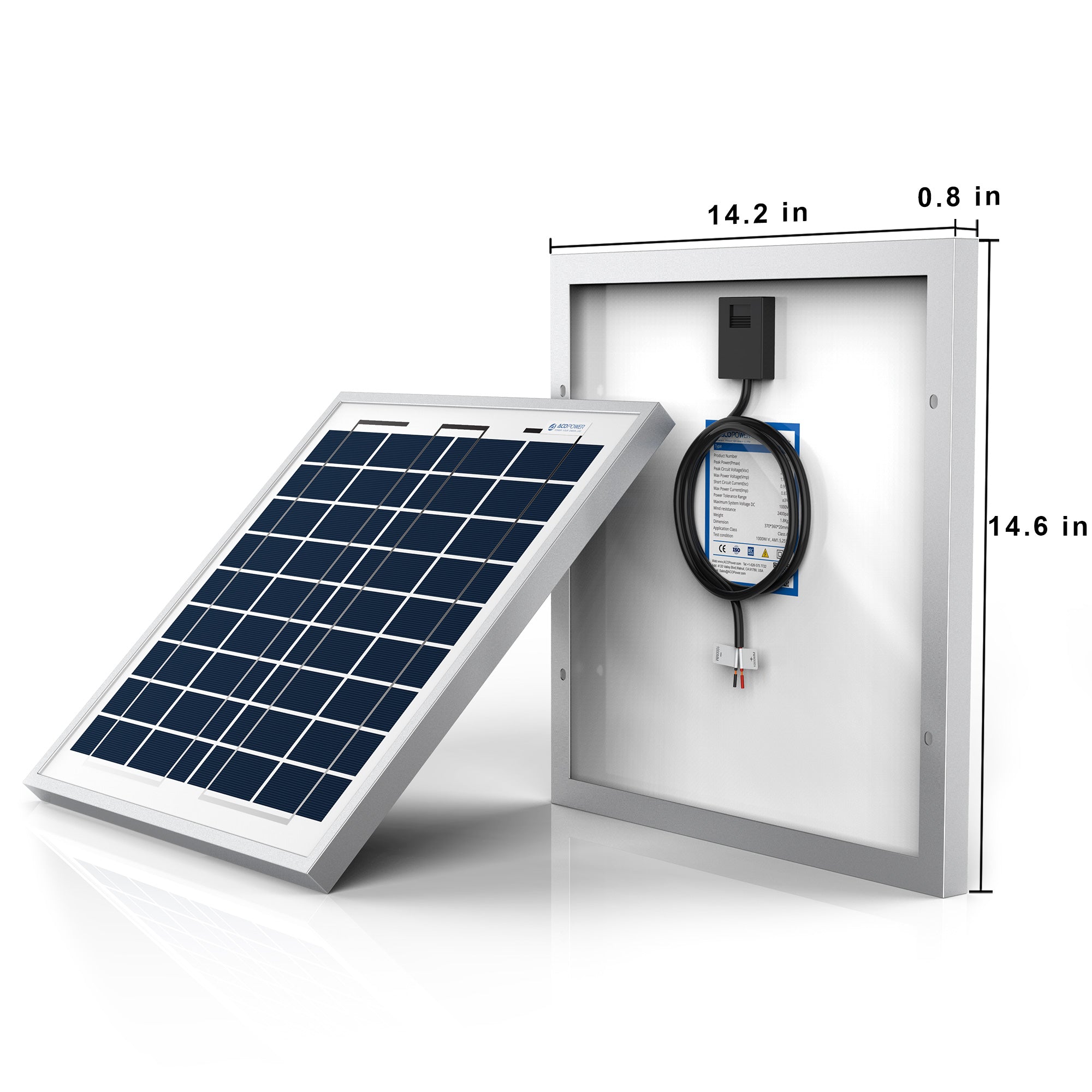

Dimensions 370x360x20mm
(14.6x14.2x0.8 in)

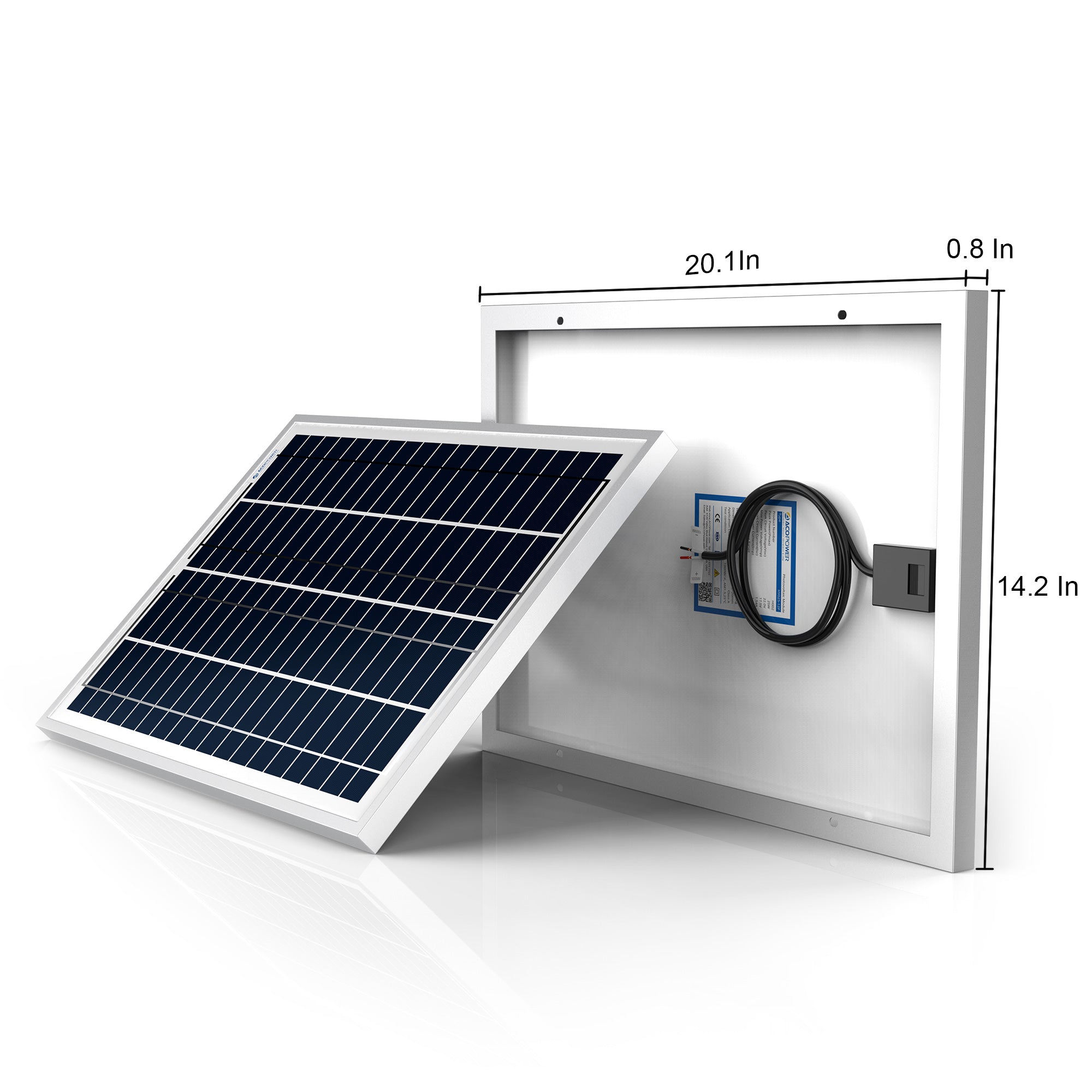

510x360x20mm
(20.1x14.2x0.8in)

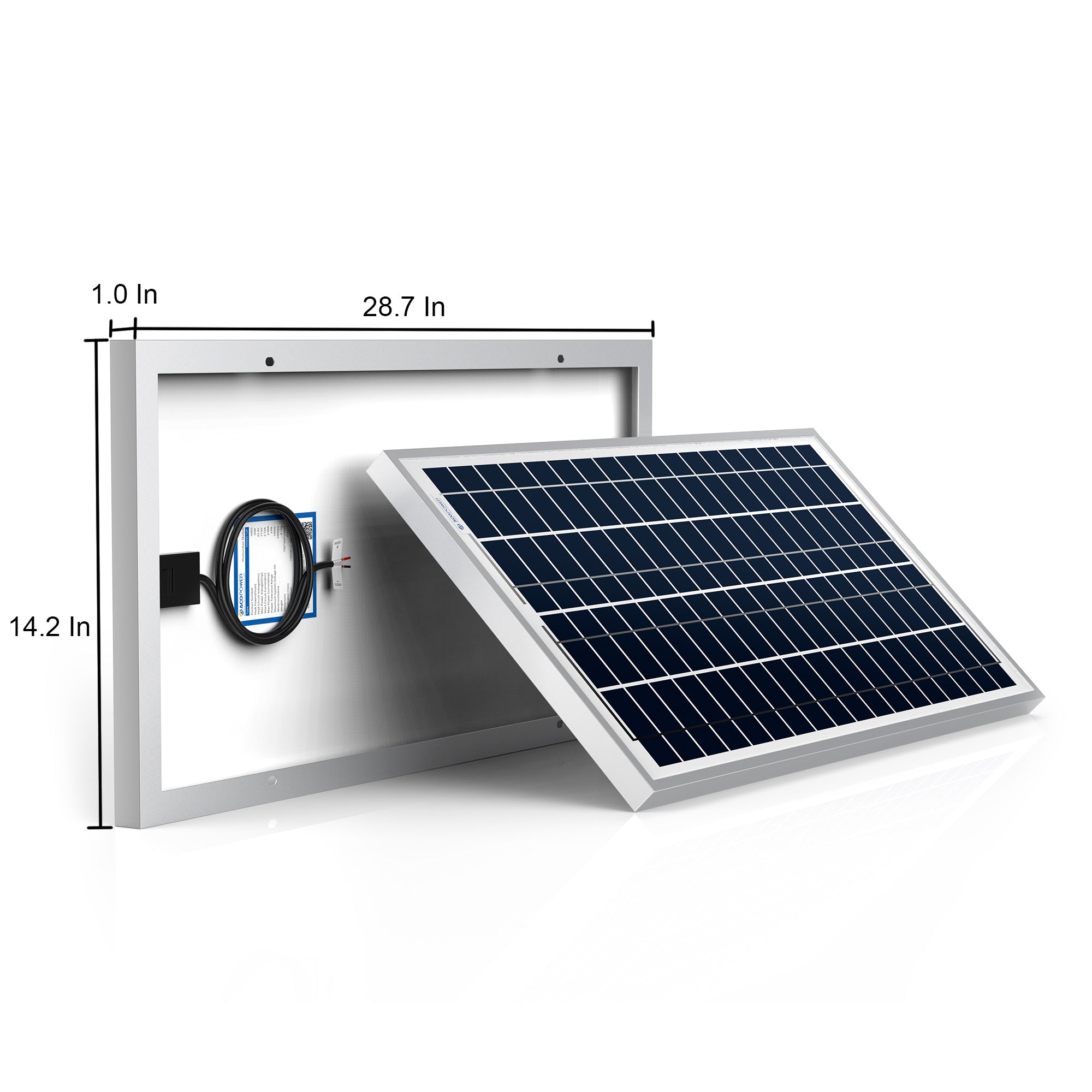

730x360x25mm
(28.7x14.2x1 in)
Weight 1.8 Kg (4.0 lbs) 3.2 Kg (7.0 lbs) 4.1 Kg (9.0 lbs)
Workmanship Warranty 10-Year 10-Year 10-Year
Performance Warranty 25-Year Power
Output Warranty
25-Year Power
Output Warranty
25-Year Power
Output Warranty

Swipe left

FAQs
Reviews

Customer Reviews

Based on 9 reviews
100%
(9)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
m
mike
Work as intended.

I use them for remote controlled gates on farms.

A
Allen
Great Product, Great Price

Great Product, Great Price! I installed two of them on my camper along with a solar controler and they work great.

M
Mike F.
I needed it to run a 12 volt fan in ...

I needed it to run a 12 volt fan in my workshop using a voltage controller. It runs the fan from sunlight to sunset. No problems at all with it 👍

S
Smirk3y
Works Great!

Panel works great so far! We put it on on a sunny day and it kept our pump going and charged our battery! The last few days haven't been sunny but I don't think we will have nay issues when it is sunny again.

J
J. Hiser
Great Little Solar Panel

I build small travel trailers and the 25 watt panel is ideal to keep the 30 amp hour batteries that power the interior led lights topped off. I like the idea of having the lights powered up whether the trailer is hooked up to electric service or not. The panels are small, but sturdy. They have held up to the crazy weather we have here in Oklahoma with no issues. On top of that, ACOPOWER's tech support is extremely helpful. I highly recommend these panels and the company as well.
