100W/125W/150W/230W 12V N-Type Bifacial Solar Panel

100W/125W/150W/230W 12V N-Type Bifacial Solar Panel

SKU: HY230-12MT

₩362,000; ₩362,000
단가: 당

Watt: 230W 230W 150W 125W 100W

제품 변형

100W/125W/150W/230W 12V N-Type Bifacial Solar Panel

₩362,000

옵션을 선택하세요

수량:

100W/125W/150W/230W 12V N-Type Bifacial Solar Panel

₩362,000

Watt: 230W 230W 150W 125W 100W

제품 변형

Description

ACOPOWER BBN Series N-Type Bifacial Solar Panel

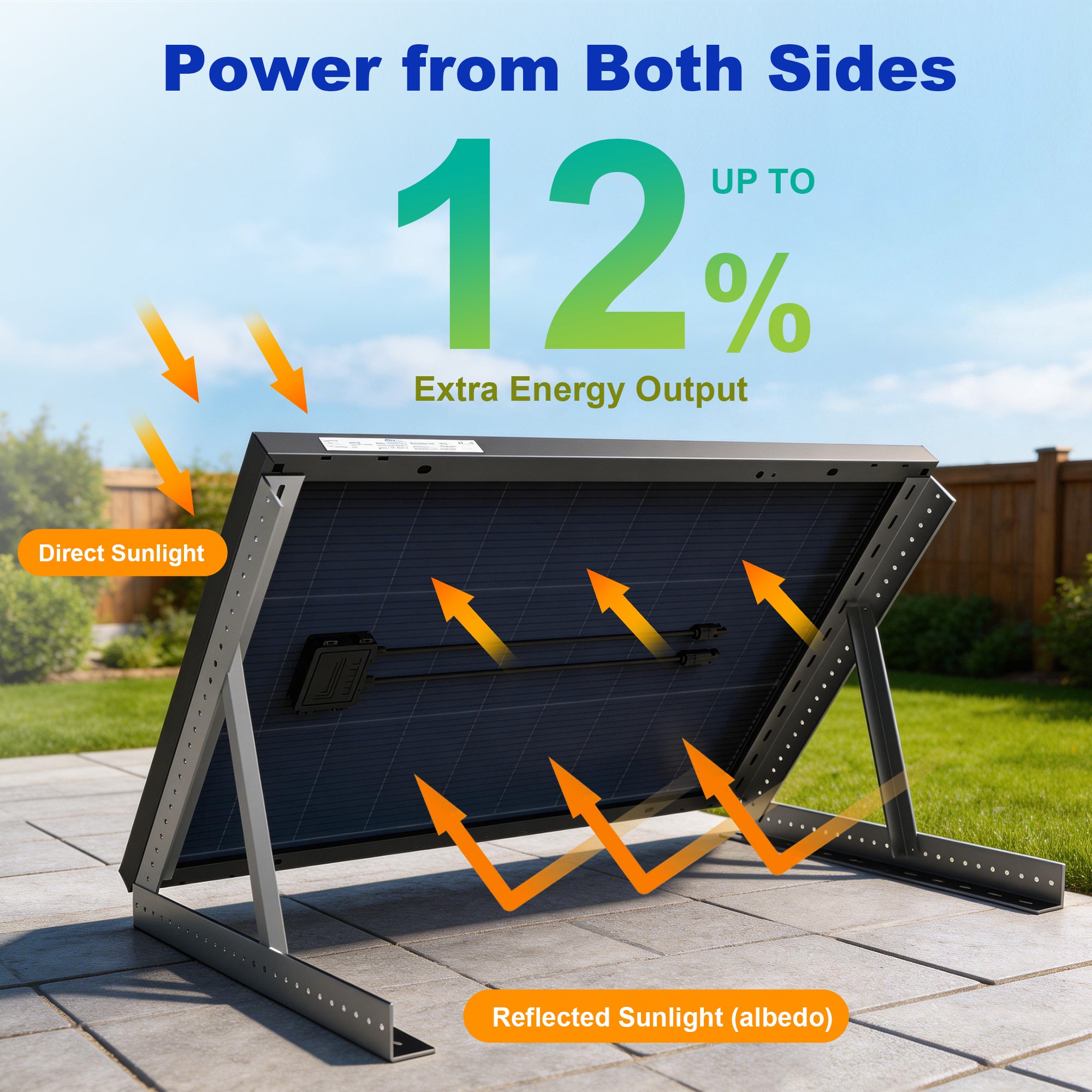

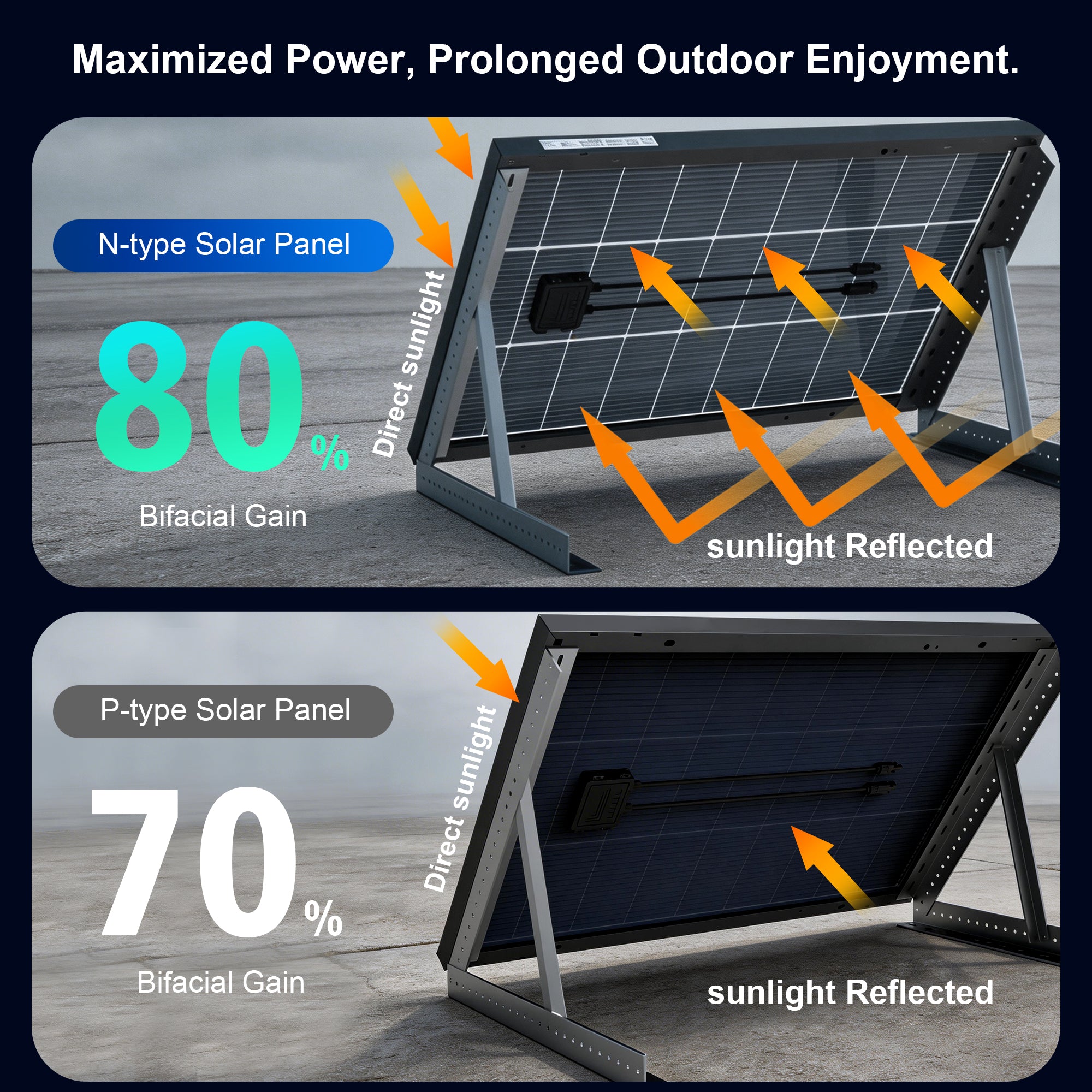

High-efficiency bifacial solar panels built with N-Type TOPCon monocrystalline cells for RVs, cabins, boats, trucks, and off-grid solar systems.

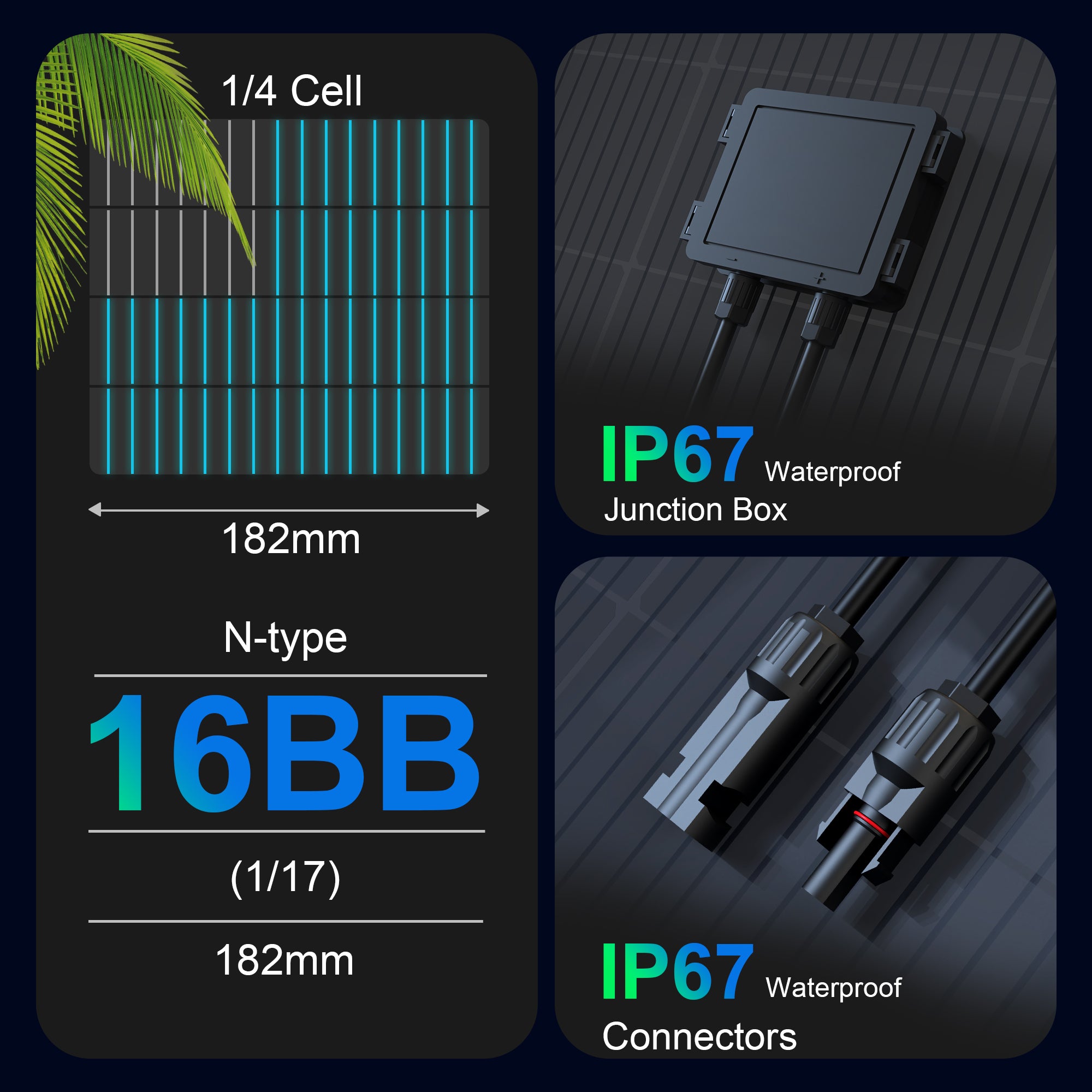

25.4% Max Cell Efficiency N-Type TOPCon Bifacial Design IP67 Junction Box MC4 Connectors 25-Year Output Warranty

N-Type TOPCon multi-busbar cell technology for higher conversion performance
High-transmission AR-coated tempered glass for better light capture
Excellent low-light output in cloudy, morning, and evening conditions
Plug-and-play solar connectors support series or parallel wiring
Pre-drilled holes compatible with ground mounts, Z-brackets, poles, and tilt mounts

Available Power Options

Model	Power	Vmp	Imp	Voc	Isc	Dimensions	Weight

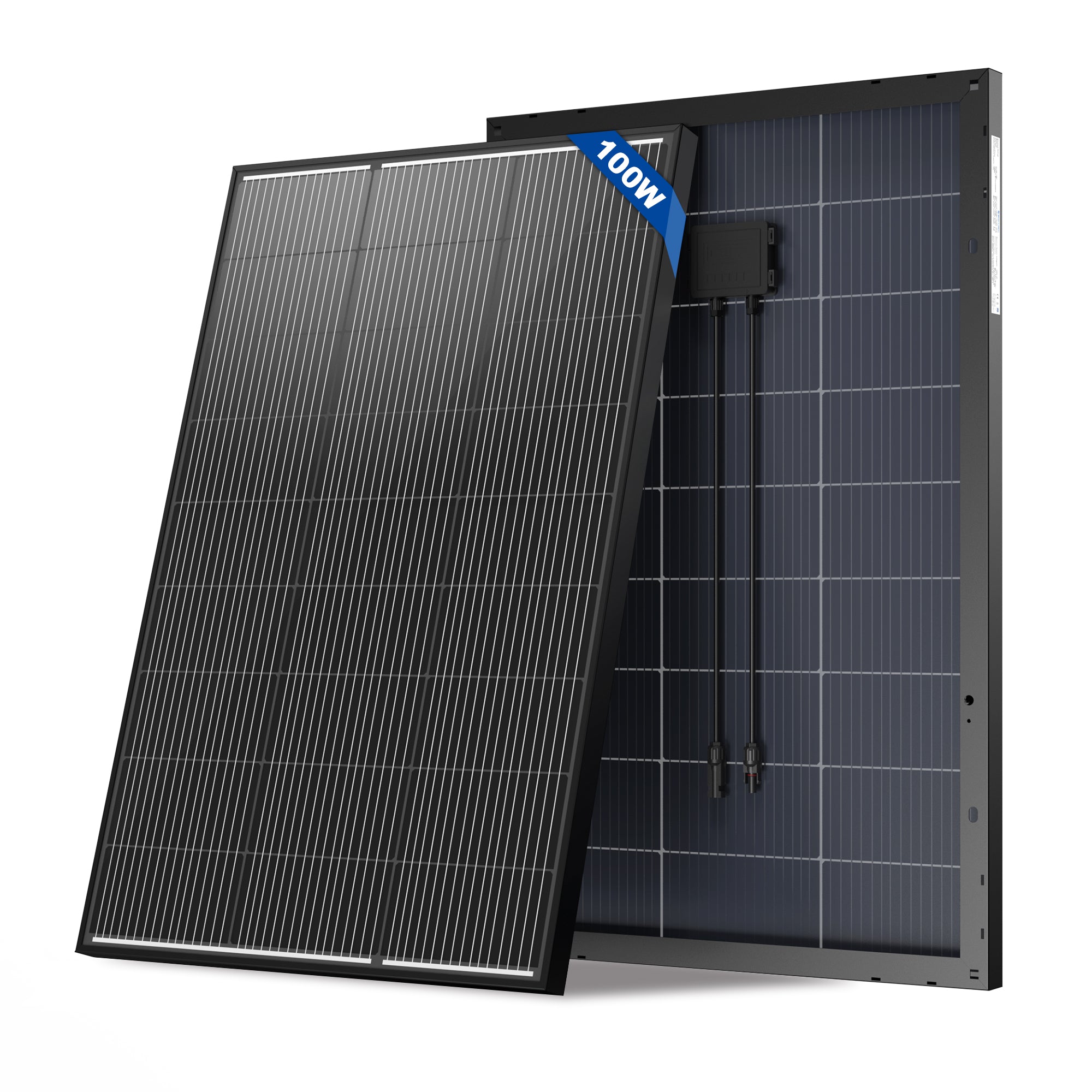

HY100-12MT	100W	17.15V	5.83A	19.37V	6.12A	885 × 579 × 35 mm	5.66 kg / 12.48 lbs

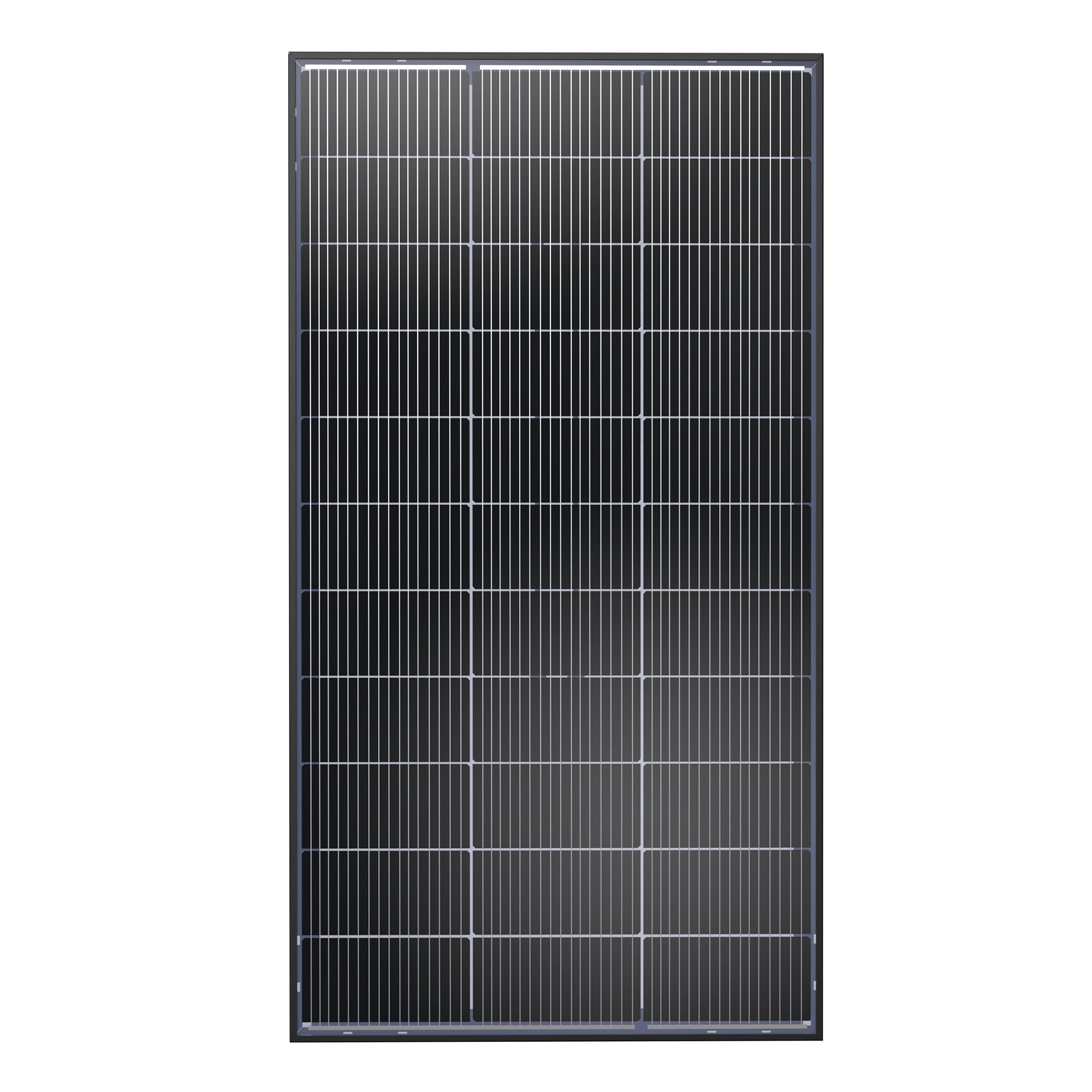

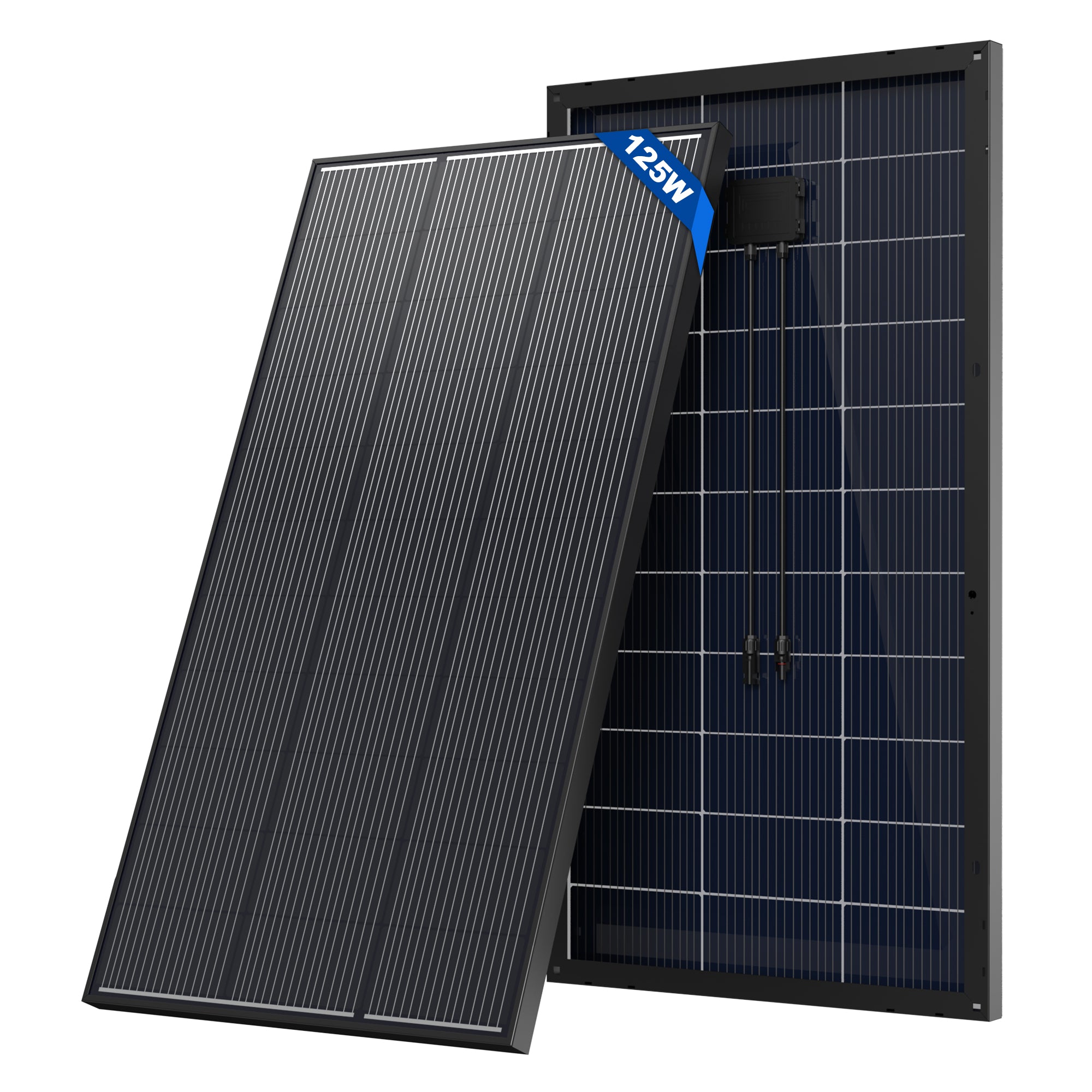

HY125-12MT	125W	19.8V	6.3A	23.76V	6.9A	1073 × 584 × 35 mm	6.9 kg / 15.2 lbs

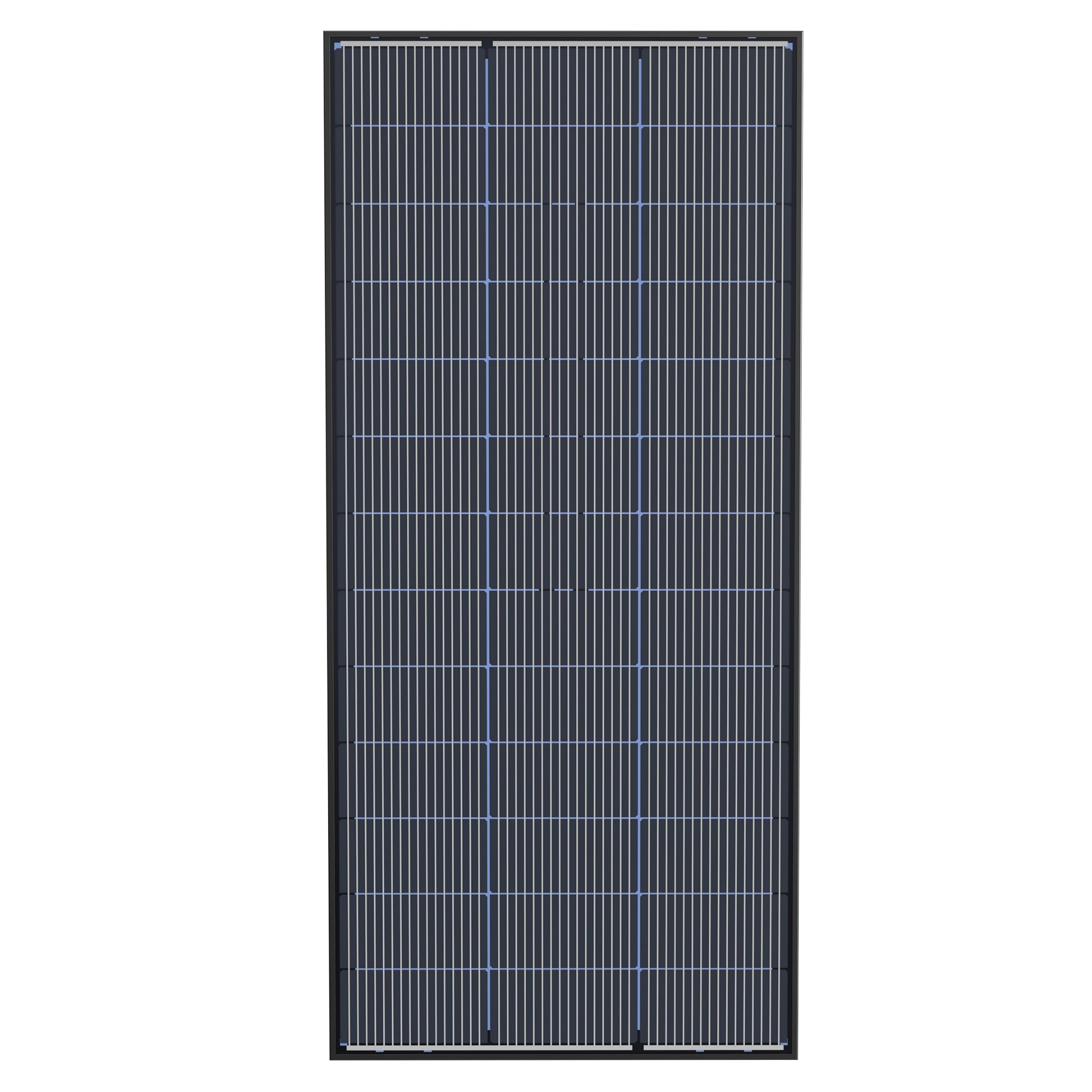

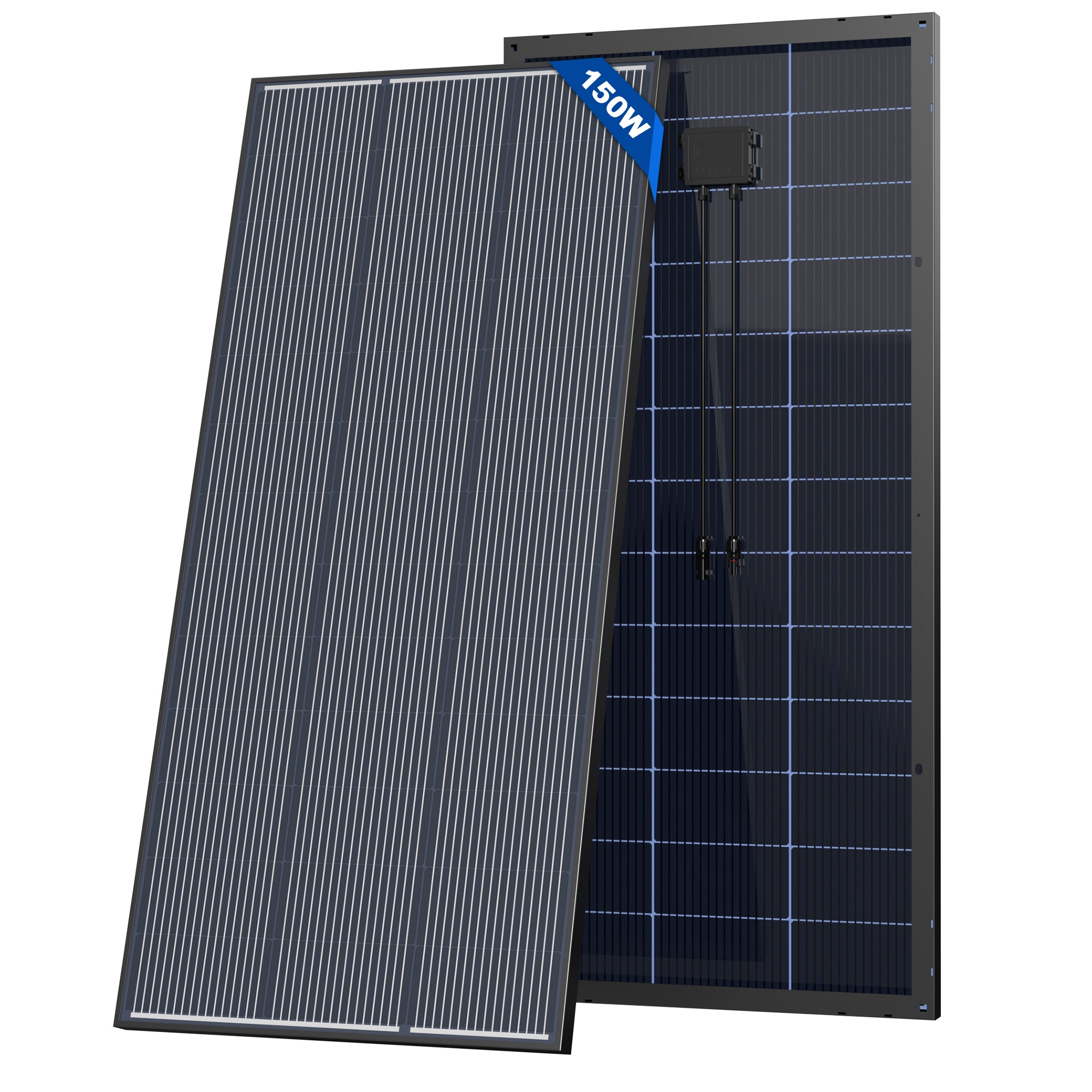

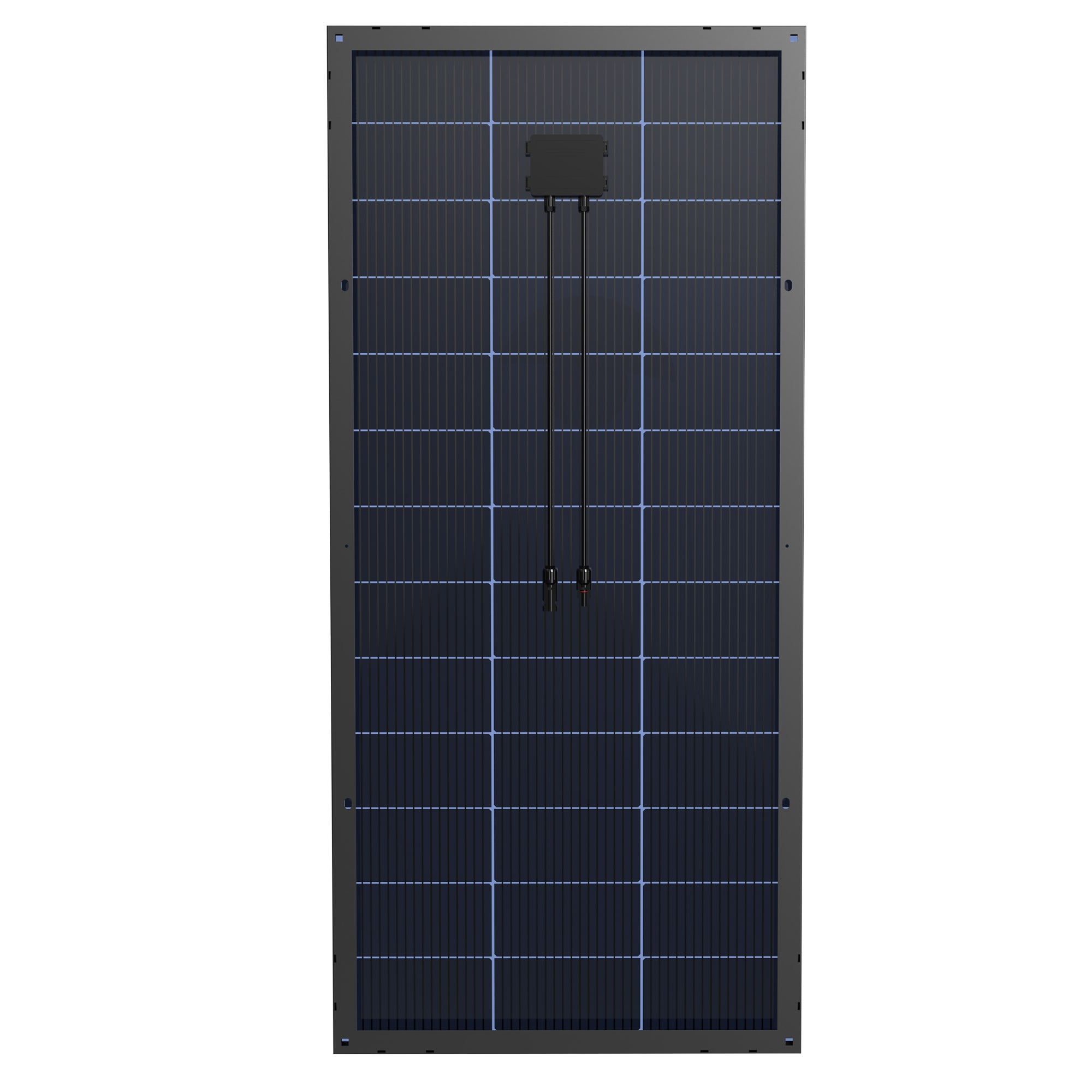

HY150-12MT	150W	23.4V	6.7A	27.3V	7.04A	1262 × 579.6 × 35 mm	7.67 kg / 16.91 lbs

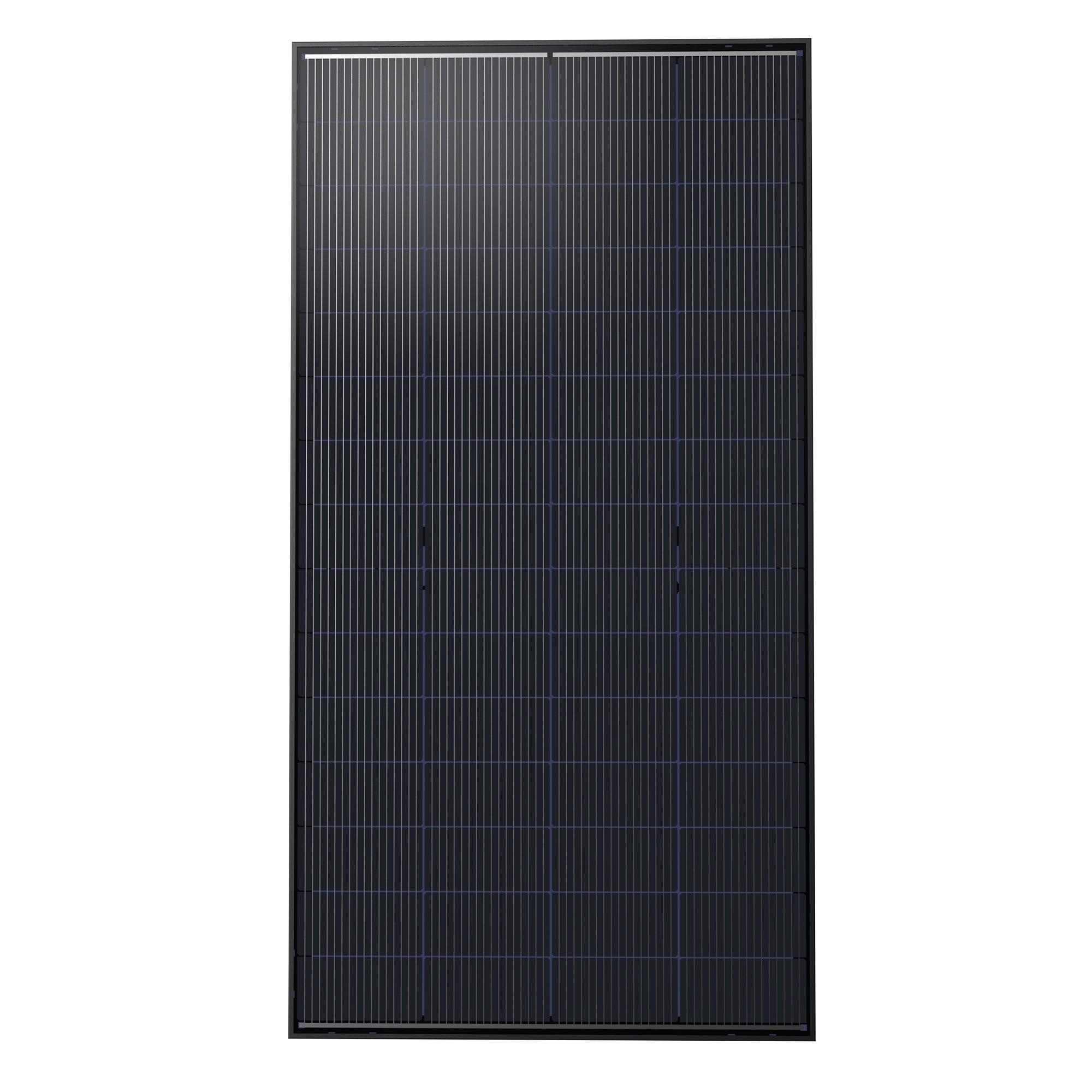

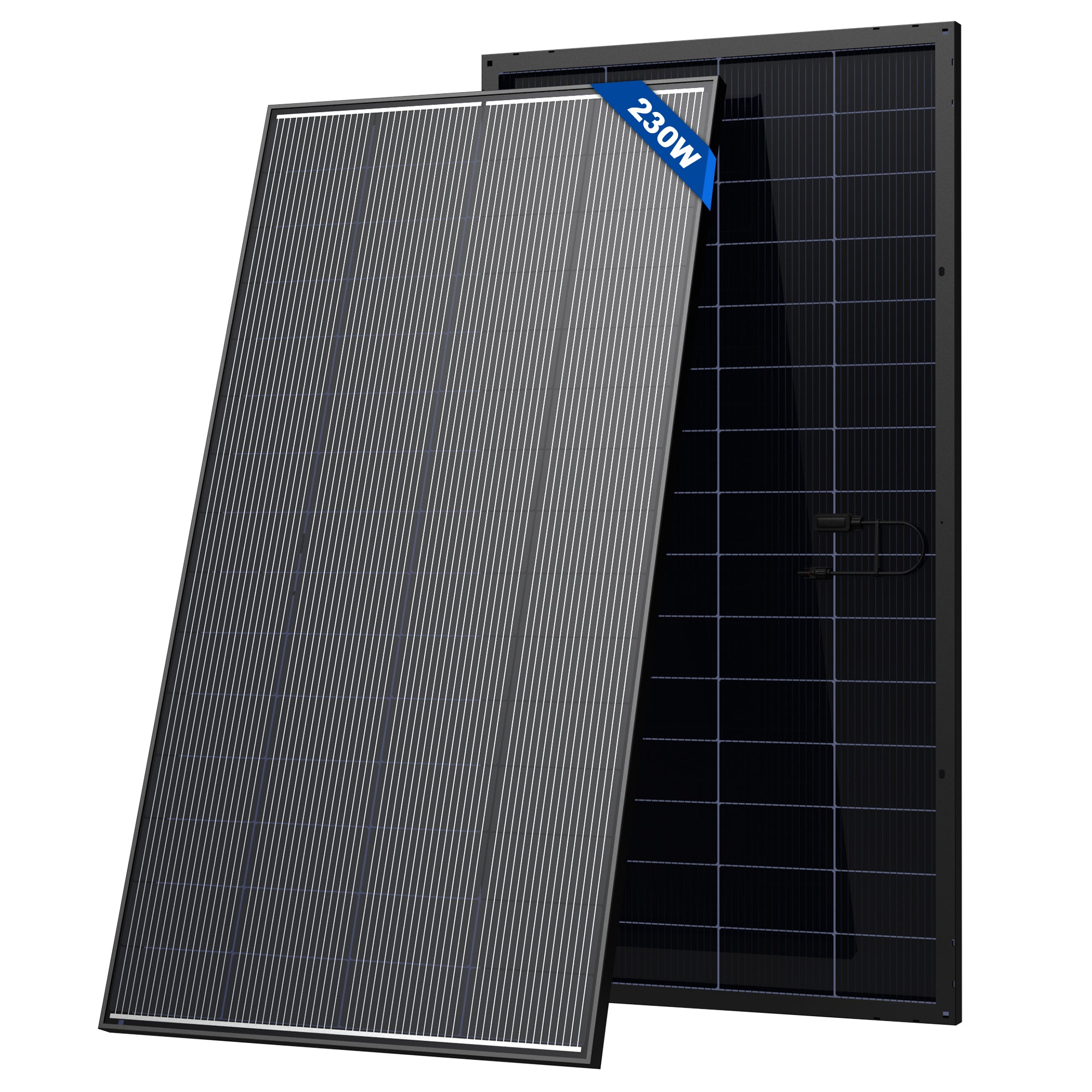

HY230-12MT	230W	18.0V	13.41A	21.0V	14.08A	1460 × 764 × 35 mm	11.78 kg / 25.97 lbs

Why Choose BBN Series?

☀️

Higher Efficiency

N-Type TOPCon cell technology improves light trapping and current collection.

🌥️

Low-Light Performance

Maintains strong output on cloudy days and during mornings and evenings.

🛠️

Easy Installation

Pre-drilled mounting holes support Z-brackets, poles, ground and tilt systems.

🛡️

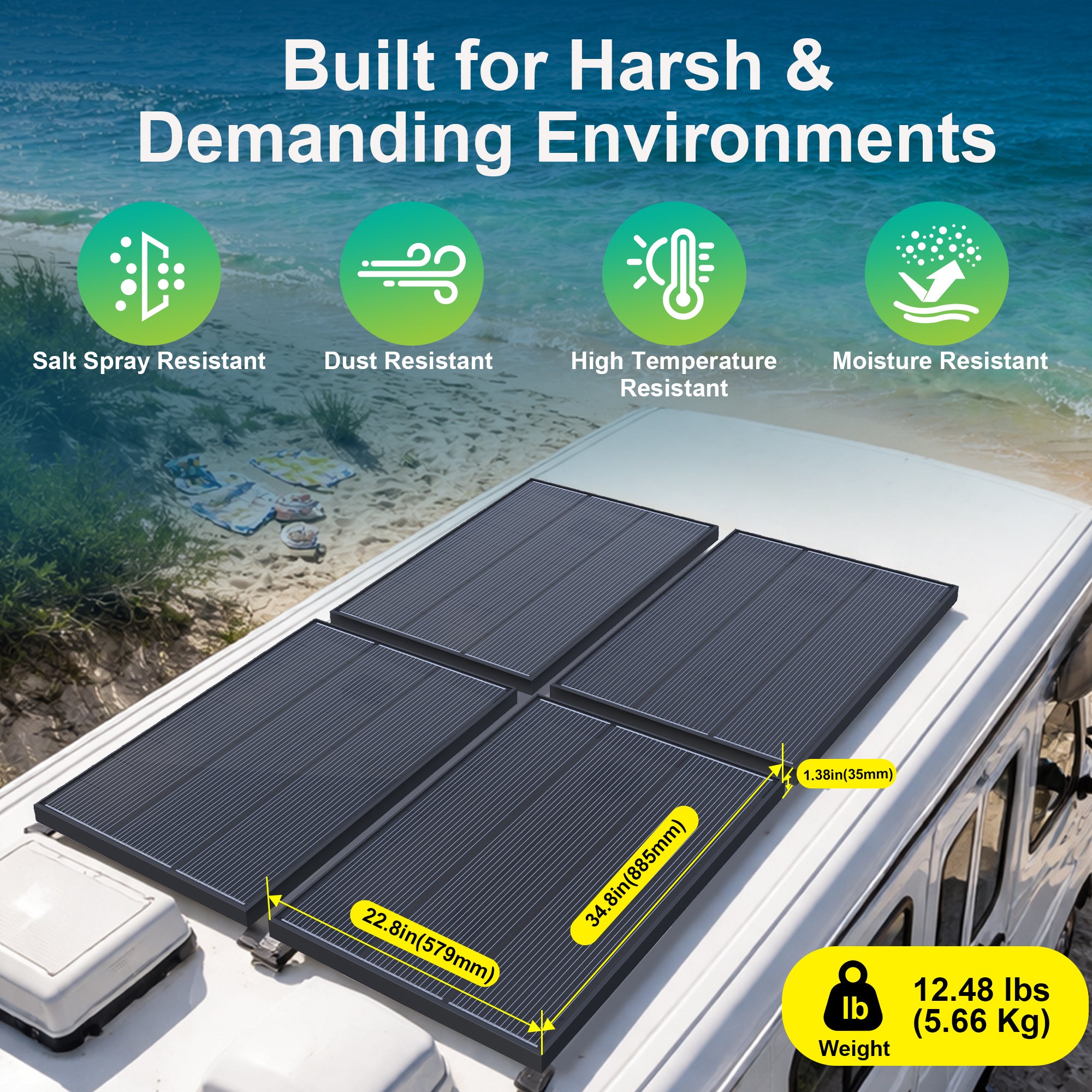

Built for Outdoors

Tempered glass, anodized aluminum frame, and IP67-rated junction box for harsh environments.

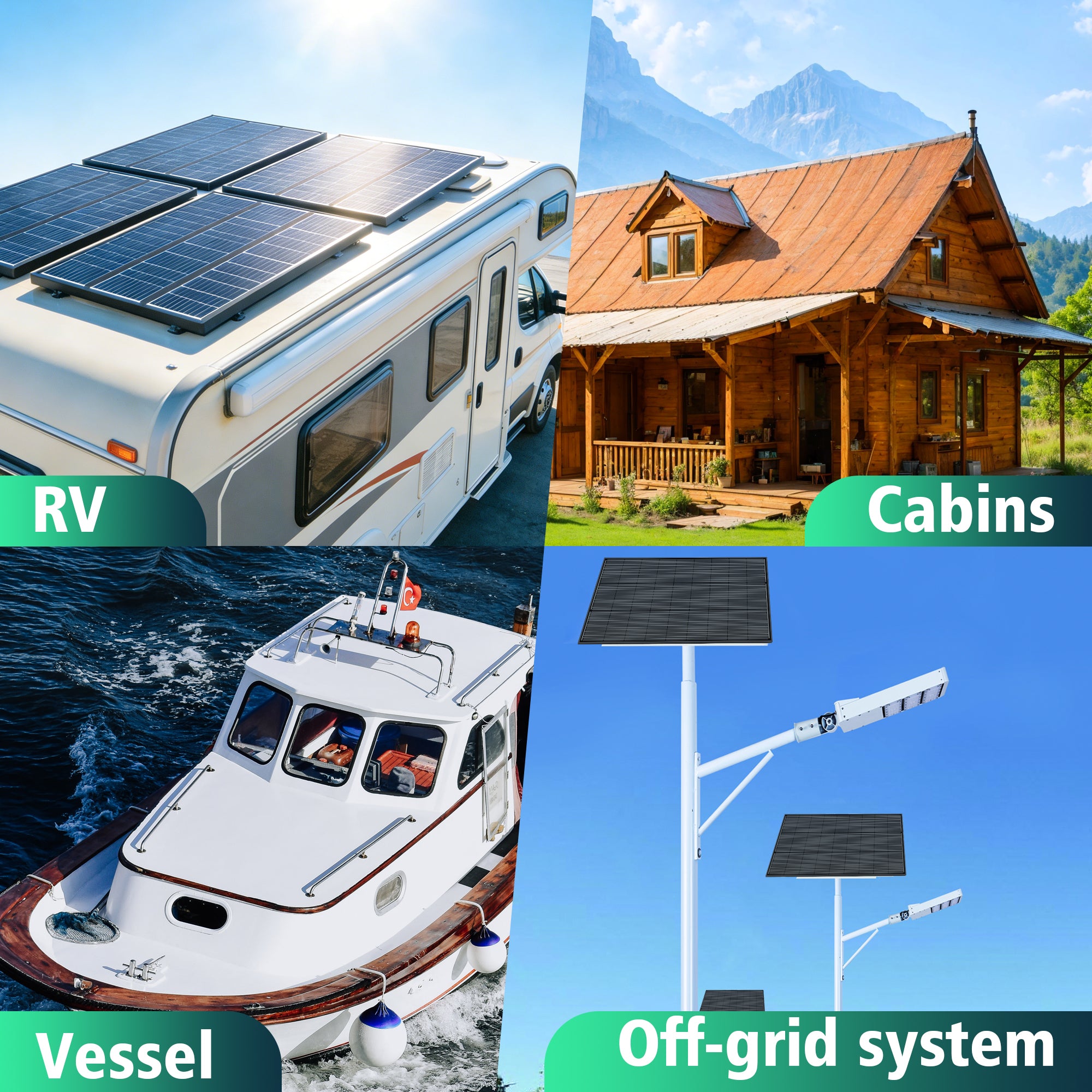

Applications

RV and camper solar systems
Cabins and off-grid battery charging
Marine and boat power systems
Truck and mobile work power systems
Remote monitoring and outdoor equipment

Common Series Specifications

Cell Type	N-Type TOPCon Monocrystalline
Module Efficiency	25.4%
Front Glass	Tempered Glass 3.2 mm (0.13 in)
Frame	Anodized Aluminum Alloy (Black)
Connectors	MC4 Connectors
Junction Box	IP67, 2 Diodes
Output Cable	12 AWG, 900 mm (35.4 in)
Max System Voltage	1000 VDC
Max Series Fuse Rating	30A
Operating Temperature	-40°C to 85°C (-40°F to 185°F)
NOCT	45 ± 2°C
Pmax Temp Coefficient	-0.32%/°C
Voc Temp Coefficient	-0.26%/°C
Isc Temp Coefficient	-0.046%/°C
